HiFi Rose RA180

HiFi Rose RA180 – Exclusive 2 x 400 W integrated amplifier with ultra-advanced technology and incomparable sound quality

The HiFi Rose RA180 is a state-of-the-art integrated amplifier that combines cutting-edge technology with elegant design. With its innovative 2 x 400 W Class-AD amplifier and GaN (gallium nitride) FETs, the RA180 is able to achieve a perfectly linear output and a dramatically reduced dead time, finally blurring the lines between digital and analog audio. Here you get all the advantages of the Class-D amplifiers' higher efficiency, while at the same time you get the open and natural sound that the Class-A amplifiers are known for.

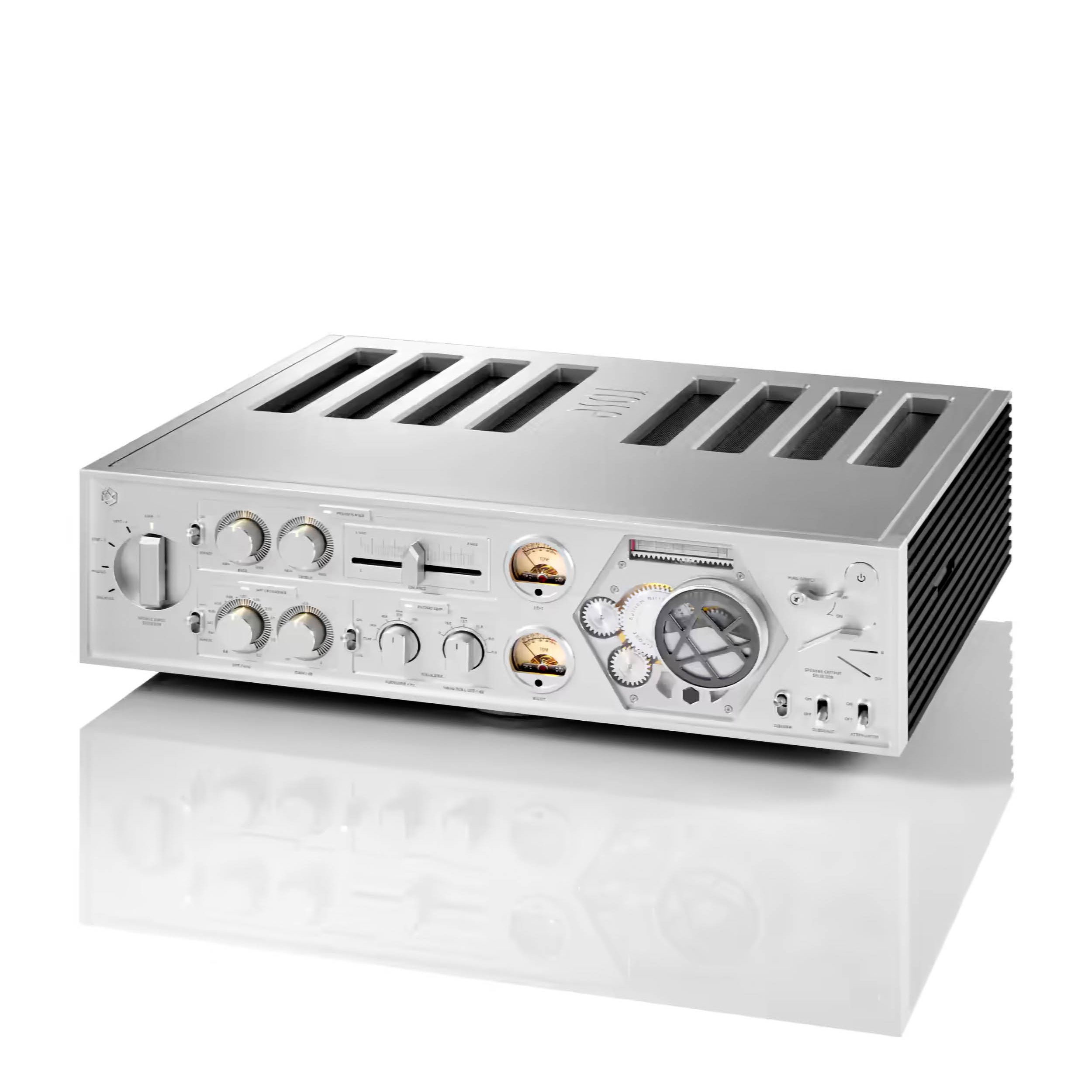

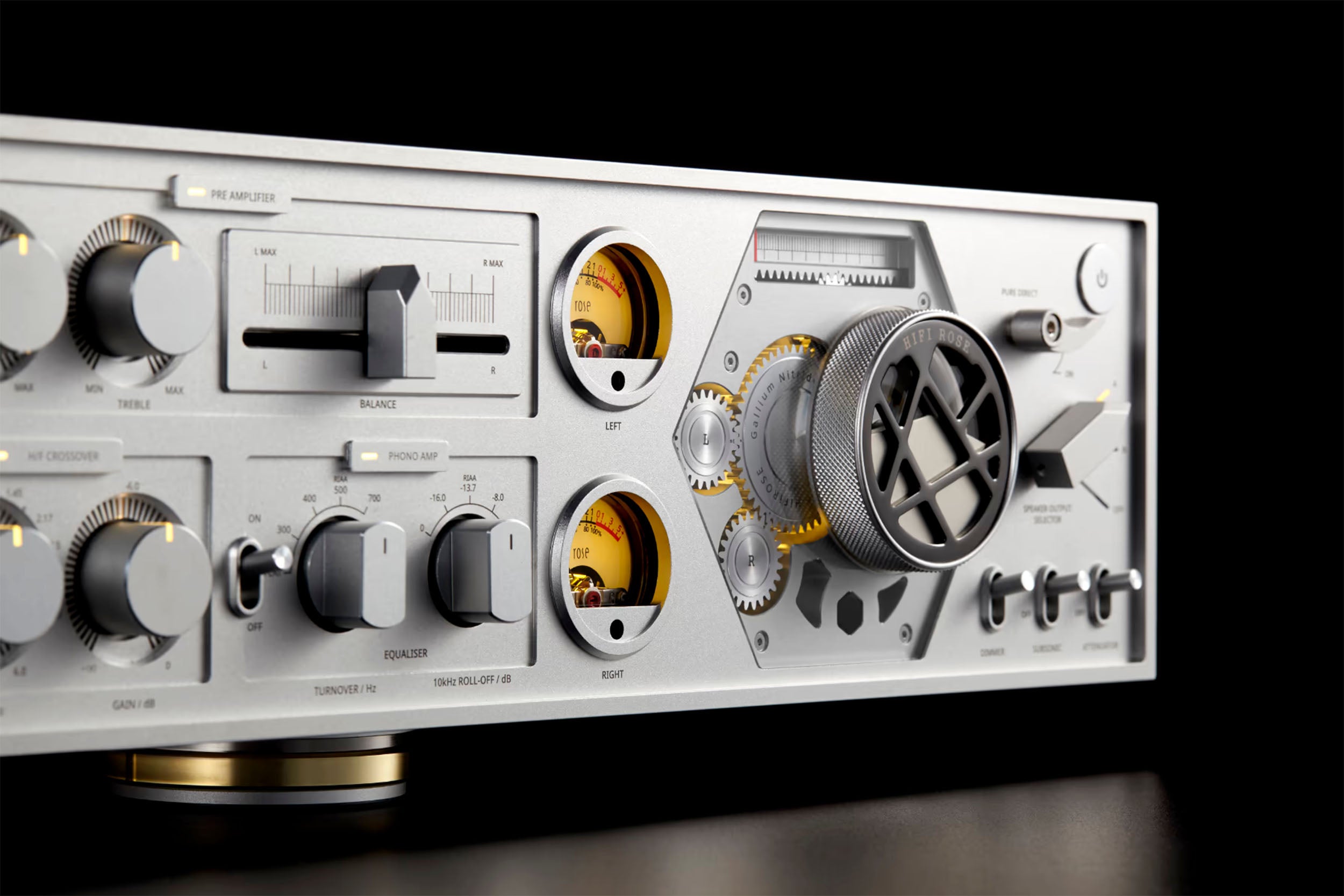

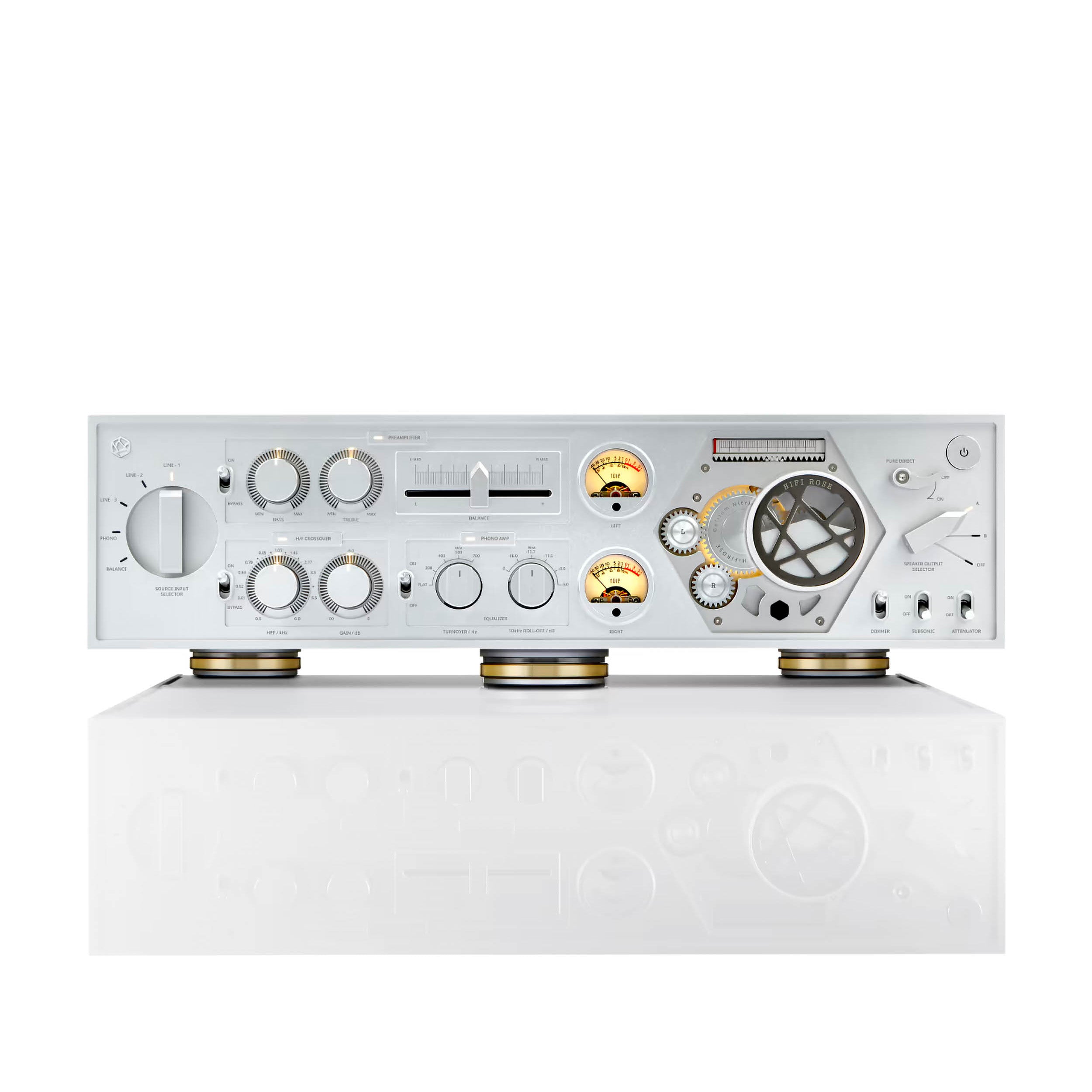

The RA180's advanced power supply uses fourth-generation SiC FET technology to achieve extremely high efficiency with minimal heat generation. The built-in precision phono amplifier with adjustable EQ makes the RA180 also an ideal choice for vinyl enthusiasts. The HiFi Rose RA180 offers uncompromising analog connections, which ensures optimal sound quality. With an elegant construction, illuminated VU meters and tone controls for bass and treble, the RA180 combines classic aesthetics with modern functionality.

Highlights

• Advanced Class D amplifier design with 800W output
• Gallium Nitride (GaN) FETs for perfect linear output
• Four amplifier modules to support Bridge Tied Loads (BTL) or bi-amping
• Frequency range up to 100kHz
• Separate outputs for two sets of stereo speakers
• Built-in moving magnet and moving coil phono stage
• Phono stage with adjustable EQ
• Active crossover to support Super Tweeter frequencies
• Tonally flat output design
• Bass and treble tone controls
• Bypass Power Amp mode.
• High efficiency power supply with Silicon Carbide (SiC) FET
• Dimmable VU meters

Revolutionary Class-AD amplifier

The RA180 represents a new era in amplifier technology. Traditional Class D amplifiers are known for their efficiency, but often criticized for their sound quality. However, HiFi Rose has solved these problems with their innovative Class AD amplifier technology, which uses GaN (gallium nitride) FETs. This technology ensures a higher speed and precision in the switching, resulting in a smooth and natural sound reproduction that is on par with the best analog amplifiers.

Perfect linearity and reduced dead time

Class D amplifiers theoretically promise perfectly linear output with 0% distortion and 100% efficiency. In practice, however, silicon FETs have limitations that affect the smoothness of the sound. The RA180 uses GaN FETs, which dramatically reduces dead time to a tenth and delivers a near perfect linear output. The result is a sound quality that goes beyond the limitations of Class D and delivers a smooth, natural sound like an analog amplifier.

Powerful and precise multi-output design

The RA180 is equipped with two independent amplifier modules, each specialized for different frequency ranges. One module focuses on stable mid-bass and balance, while the other handles high tones and super tweeter areas. Each module delivers 200 W (8 Ω) and can provide up to 400 W per channel. By connecting these modules to the speakers' different frequency ranges separately, an improved driving force is achieved without opposing electromotive force. In BTL mode, the two modules are combined for a rich, balanced sound.

Designed for an authentic reproduction of the harmonic overtones

Human hearing has an upper limit of 15-20 kHz, but music contains harmonic overtones that extend far beyond this range. The RA180 is designed to handle these high frequencies with a frequency response from 20 Hz to 50 kHz, and even up to 100 kHz @ -3 dB and 200 kHz @ -6 dB. This ensures a deep and wide soundstage that accurately reproduces the full spectrum of the music.

Advanced and stable power supply

The RA180's power supply is developed with fourth-generation SiC FET technology to deliver high power with minimal heat generation. The self-developed PFC (power factor circuit) ensures that the amplifier is not affected by sudden load changes. The power supply supports a powerful damping factor of at least 200 and delivers a total power of 1000 W, ensuring powerful bass and soft treble.

Precision phono amplifier with variable EQ

For vinyl enthusiasts, the RA180 offers an advanced phono amplifier that accurately reproduces the manufacturer's original intentions. With adjustable low-mid bass TURNOVER and high-frequency ROLL OFF functions, the amplifier can be adapted to different vinyl records. It supports both MOVING MAGNET and MOVING COIL pickups, and the precise EQ settings ensure that the sound is faithful to the original recording.

Uncompromising connectivity for pure sound

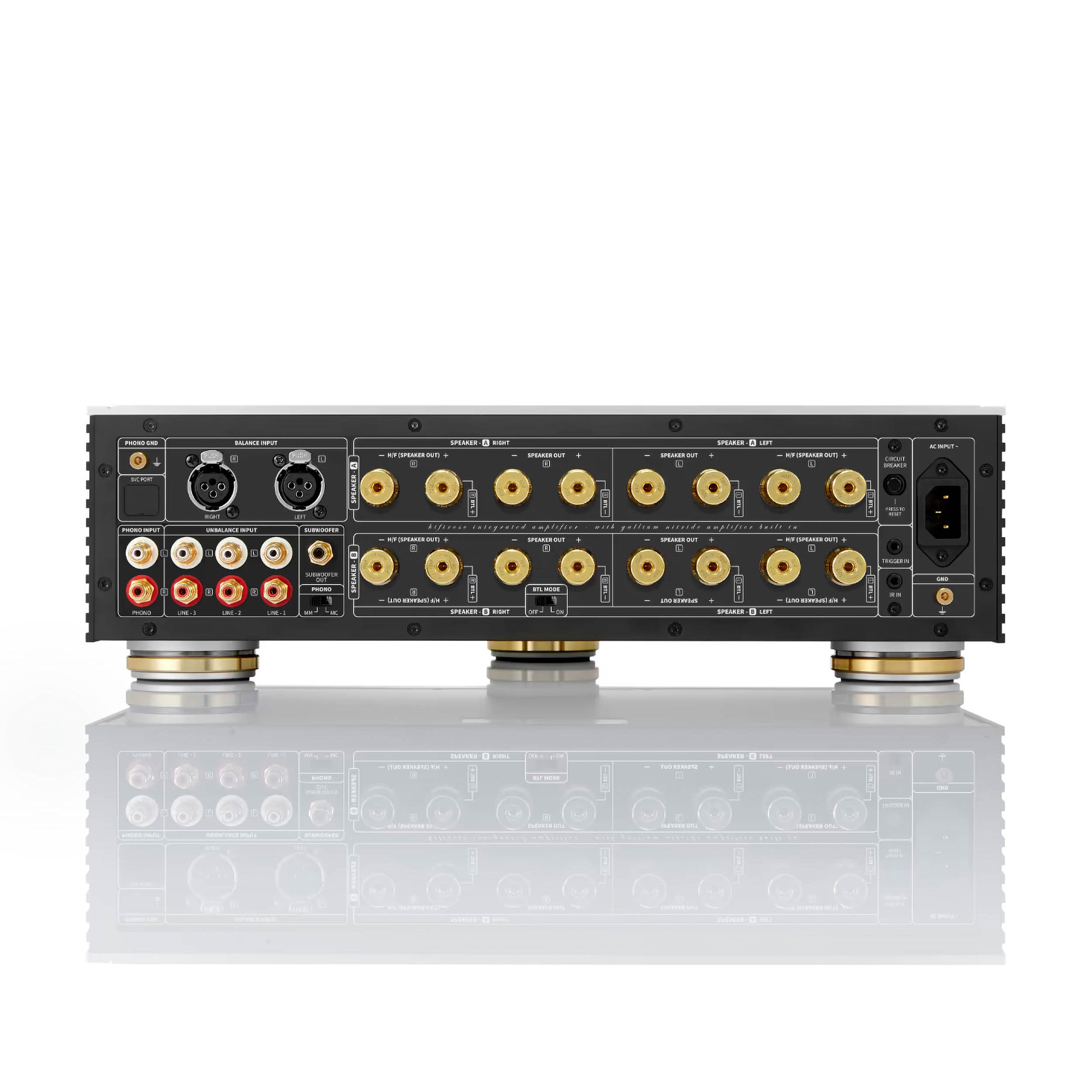

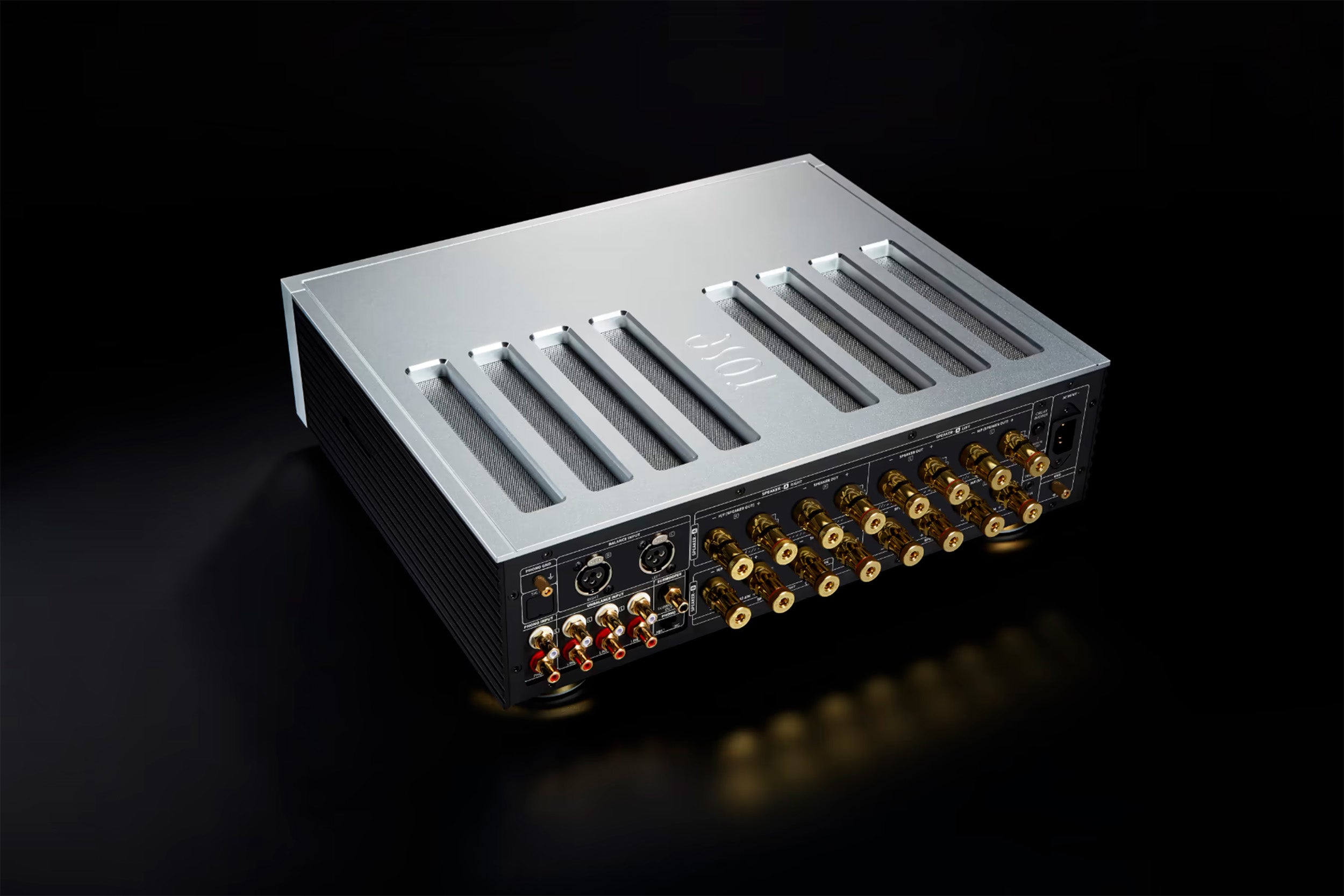

The HiFi Rose RA180 has been designed with a focus on uncompromising sound quality, which is why it only offers analogue inputs. This deliberate design choice ensures that the analog signal is processed without interference from digital circuitry. HiFi Rose has chosen to separate the digital inputs and place them in their streamers, which act as central hubs for all digital processing. This separation optimizes the analog signal path and ensures an unsurpassed sound quality. The RA180 is equipped with both balanced XLR outputs and unbalanced RCA outputs, providing maximum flexibility and quality in your sound setup.
