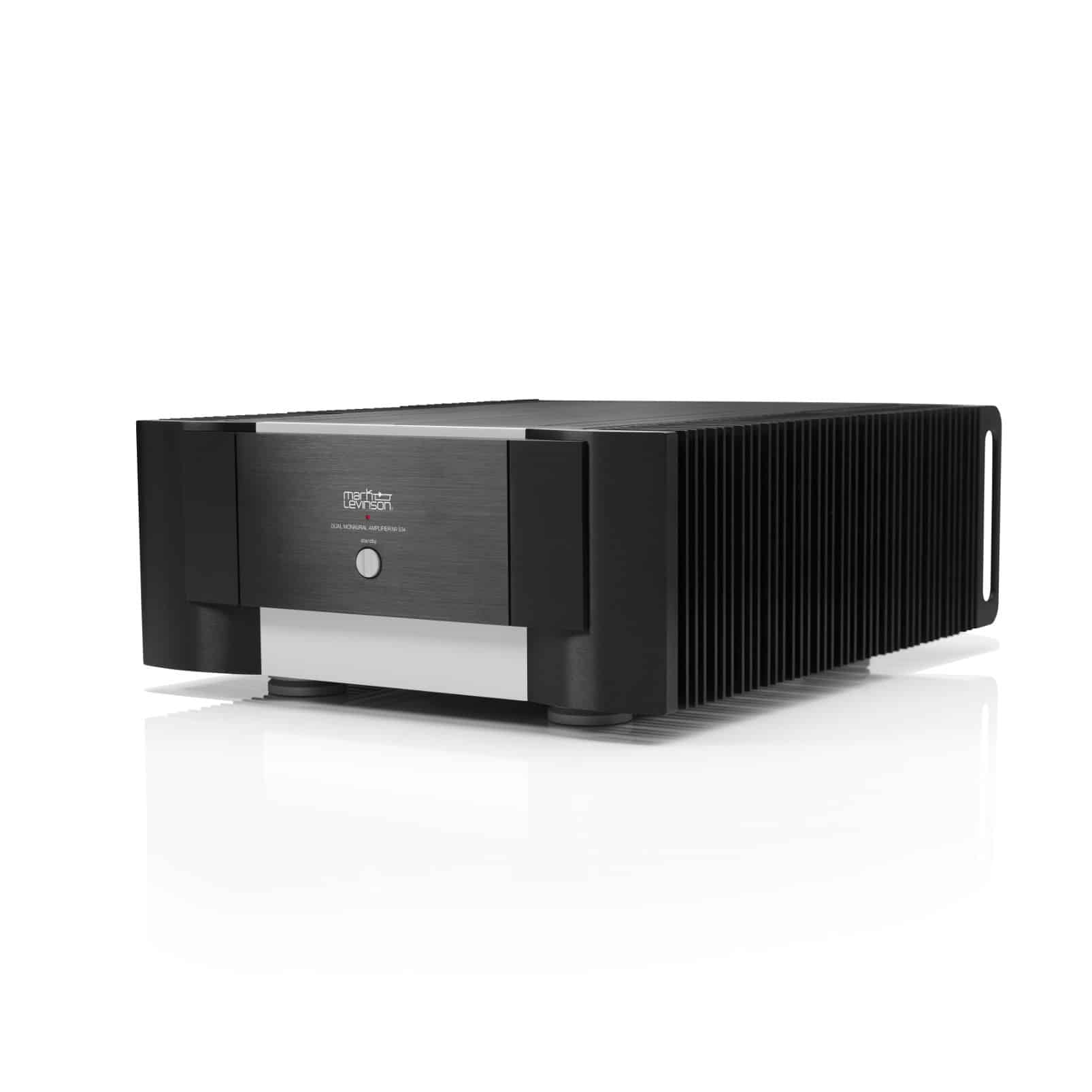

Mark Levinson No. 534

Mark Levinson No. 534 - The power amplifier that pulls everything

A Mark Levinson No. 534 Dual mono Stereo power amplifier is developed based on the design of the legendary No.33 and ML-2 amplifiers. The technical design and components have been improved, but the classic ML sound has been retained and refined.
The amplifier runs with a very high bias current and thus in Class A mode under most listening conditions. Only when you really press it does it change to Class A/B.

no. 534 is a Dual mono stereo power amplifier which provides 2x250W into 8 ohms, 2x500watts into 4 ohms and it is stable down to 2 ohms. It does
No. 534 for the perfect partner for any high-end loudspeaker.

Since 1972, Mark Levinson has been dedicated to a quest for the musical above all else. To achieve this goal, Mark Levinson engineers scoured the company's archives and ultimately developed a circuit design philosophy called Pure Path. In short, it's a discrete, direct-coupled, fully balanced, dual mono signal path that delivers unlimited dynamics with minimal noise.

Specifications:

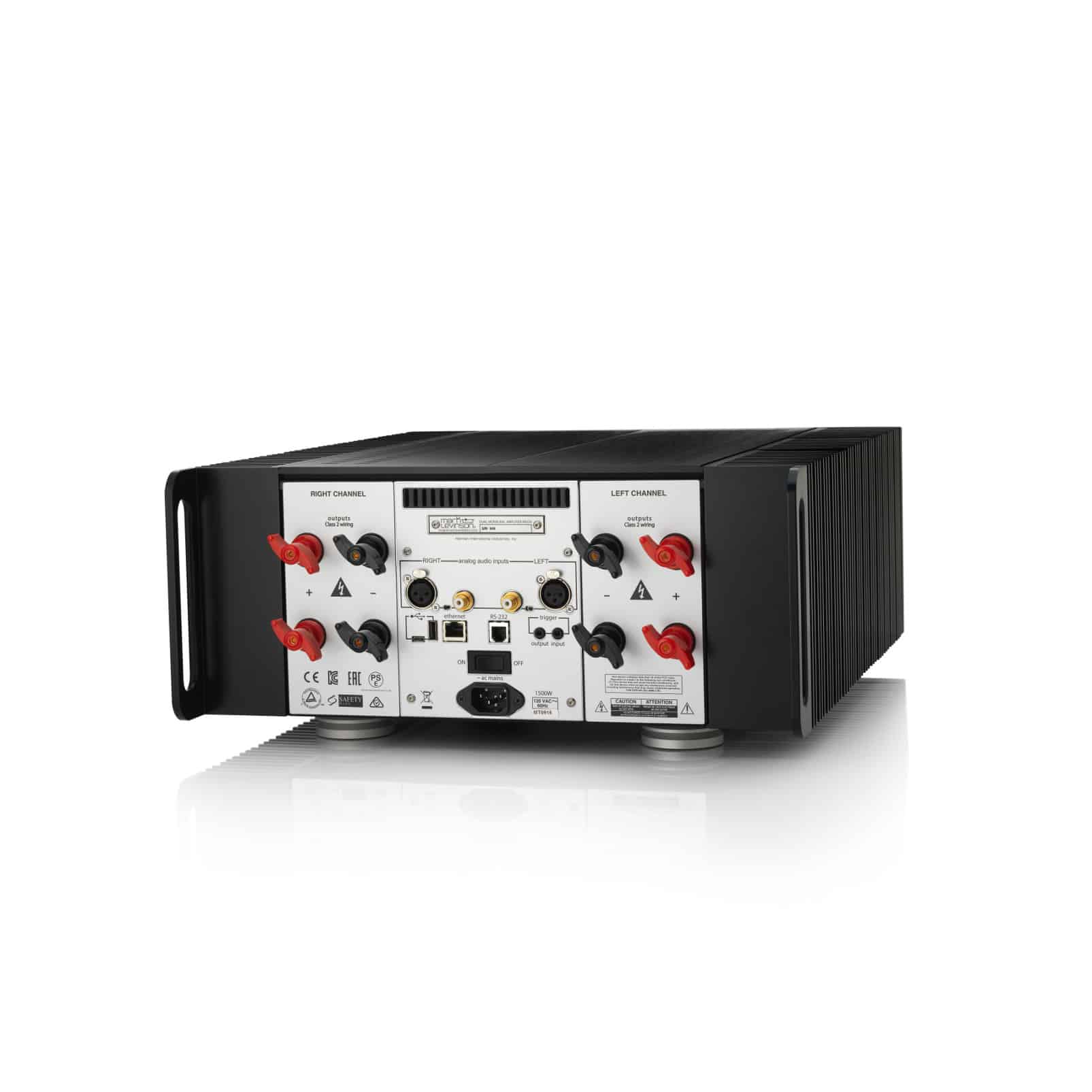

• Input connectors: One pair Balanced, one pair single-ended
• Speaker jacks: Four pairs of Hurricane speakers
outputs, banana plug-plug per channel, except on European
versions
• Control I/O: Ethernet, RS-232, Trigger in and out, USB-A, Mini
USB
• Rated output power: 250 wpc RMS @ 8Ω, 20Hz to 20kHz @
<0.3% THD, full output from 2.83 VRMS
• Frequency response: 10Hz to 20kHz ±0.2dB
• Signal-to-noise ratio: >85dB, reference level: 2.83 VRMS
• Input impedance: 60 kΩ balanced; 30 kΩ unbalanced
• Voltage gain: 26dB
• Input sensitivity: 2.83 VRMS output at 142 mVRMS input
• Power requirements: 100V~, 120V~, 230V~, factory set to
country of destination, 1500W
• Dimensions (H x W x D): (with feet): 7.75" (19.7 cm) / (without
ft.): 7" x 17.75" x 20" (19.7cm/17.8cm x 45.1cm x 50.8cm)
• Weight: Net Weight: 107 lbs (48.5 kg); Shipping weight: 124
lbs (56.3 kg)
